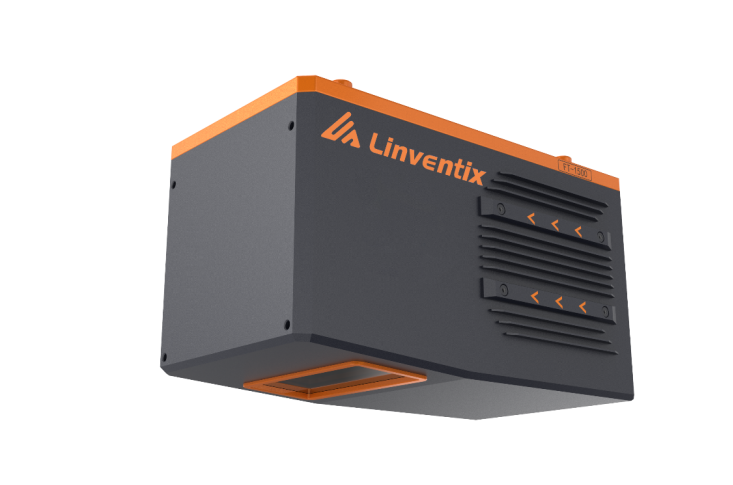

    FT1500 is the first generation of long-range, high-precision, lightweight airborne LiDAR system. It can measure distances up to 1500m, weighs only 2.9kg, and features up to 7 returns (customizable to unlimited returns). The system is highly integrated, compatible with various load-carrying platforms such as VTOL fixed-wing UAVs, multi-rotor UAVs, helicopters, and unmanned boats. Equipped with independently developed point cloud fusion software, it provides integrated solutions for a variety of application needs. The FT1500 LiDAR can be widely used in topographic surveying, power line inspection, mining measurement, shoreline measurement, emergency surveying, natural resource investigation, and real-world 3D modeling, among other fields.

    Advantages

    Higher accuracy

    Longer range measurement

    Faster frequency

    Stronger penetration

    Specifications

    Optical Parameters

    Laser Class

    Class 1

    Wavelength

    1550nm

    Laser Beam Divergence

    0. 5mrad

    Measuring Range

    10m~1500m@80%

    Laser Pulse Repetition Rate

    100k~2000K

    Field of View

    75 °

    Angular Resolution

    0.001°

    Measurement Technique

    Phase Pulse Modulation

    Scan Speed

    50~300 Scans/Sec

    Laser Parameters

    Relative Precision

    5mm@100m

    Max Number of Targets Per Pulse

    7 (Customizable Unlimited Times)

    Echo Signal Intensity

    8bit

    POS

    IMU Accuracy (RMS)

    (R; P; H) : 0.003°;  0.003°;  0.01°

    Location Accuracy

    1cm+1ppm

    Size

    Weight

    2.9kg

    Main Dimensions

    220*130*126mm

    Work Environment

    Operating Temperature Range

    -20°C~ +55°C

    Storage Temperature Range

    -40°C~ +70°C

    Light Condition

    Natural Light

    Humidity

    No Condensing

    Protection Class

    IP64, Dust and Splash-proof

    Power

    Power Supply Input Voltage

    24VDC (20V~32V)

    Power Consumption

    <60W

    Data Interfaces

    Configuration/Scan Data Output

    LAN-TCP/IP

    Configuration/Scan Data Output

    WIFI

    External Camera

    TTL I /0

    External GNSS Antenna

    SMA Connector

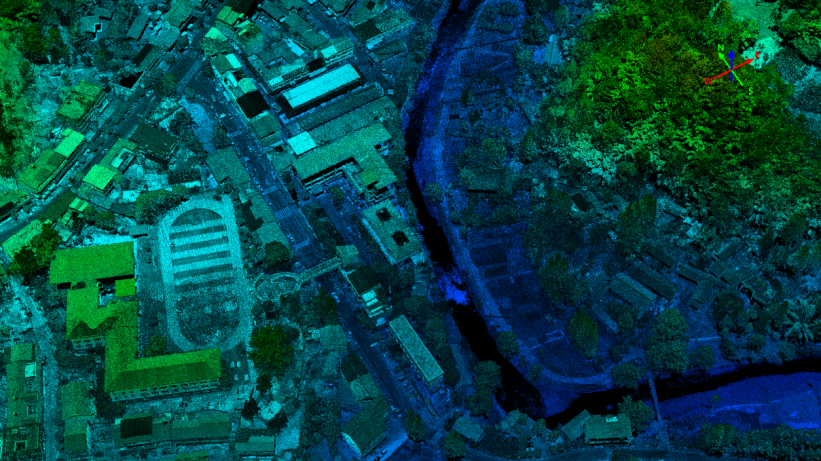

    Case Point cloud


    Point density of single route

    Ground speed 28m/s

    AGL

    Density

    Frequency

    100m

    210 pts/m^2

    1000k

    200m

    52 pts/m^2

    500k

    300m

    20 pts/m^2

    300k

    400m

    13 pts/m^2

    250k

    500m

    8 pts/m^2

    200k

    700m

    4 pts/m^2

    150k

    1000m

    2 pts/m^2

    100k


    Multi-Rotor Aircraft(Battery Life 50min Ground speed10m/s)

    AGL(m)

    Density(pts/㎡)

    Frequency(Khz)

    Operation Area

    (k㎡)

    100

    1738

    2000

    3.5

    200

    434

    1000

    7.0

    300

    260

    900

    10.5

    400

    108

    500

    14

    500

    87

    500

    17.5

    VTOL(Battery Life 120min Ground speed28m/s)

    AGL(m)

    Density(pts/㎡)

    Frequency(Khz)

    Operation Area

    (k㎡)

    200

    308

    2000

    46.8

    300

    92

    900

    70.2

    400

    38

    500

    93.6

    500

    30

    500

    117


    CASES

    Mountainous Terrain Mapping

    Acquiring terrain data for an approximately 3.5 square kilometer mountainous area. The terrain in the mountainous area is complex, and it is largely covered with dense forests, making manual surveying difficult and inefficient. The DEM results are generated based on high-precision LiDAR measurement data.

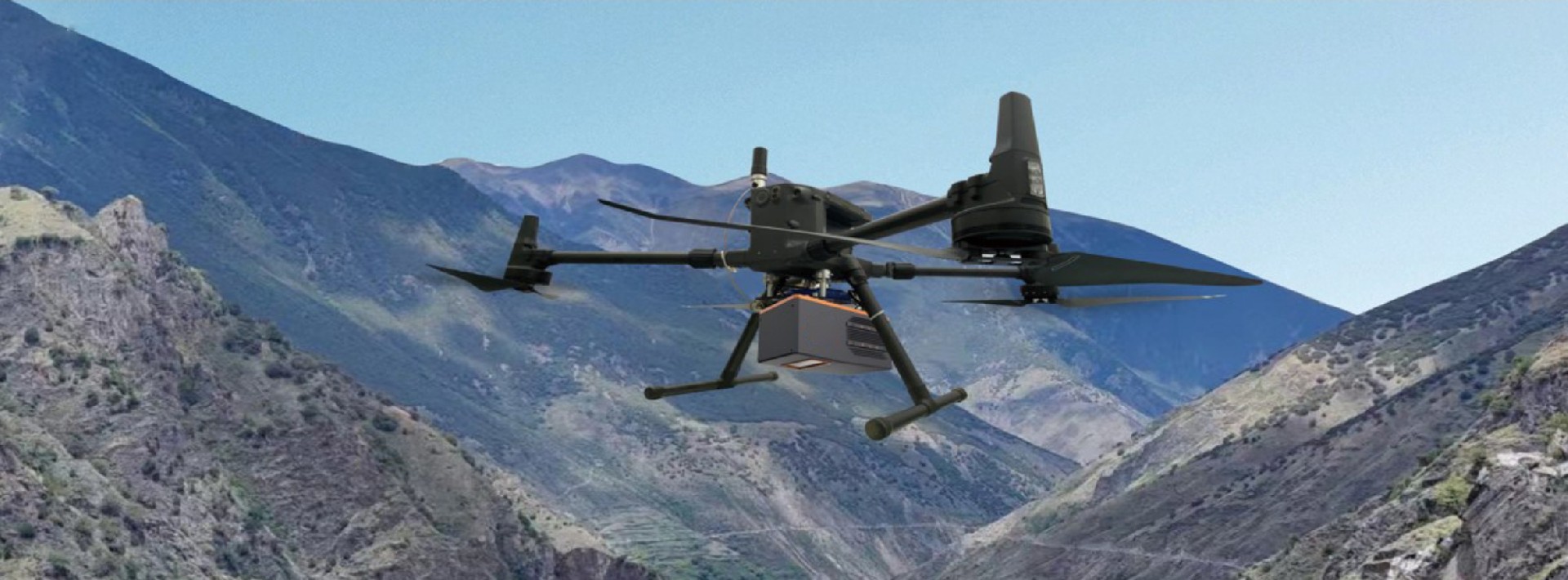

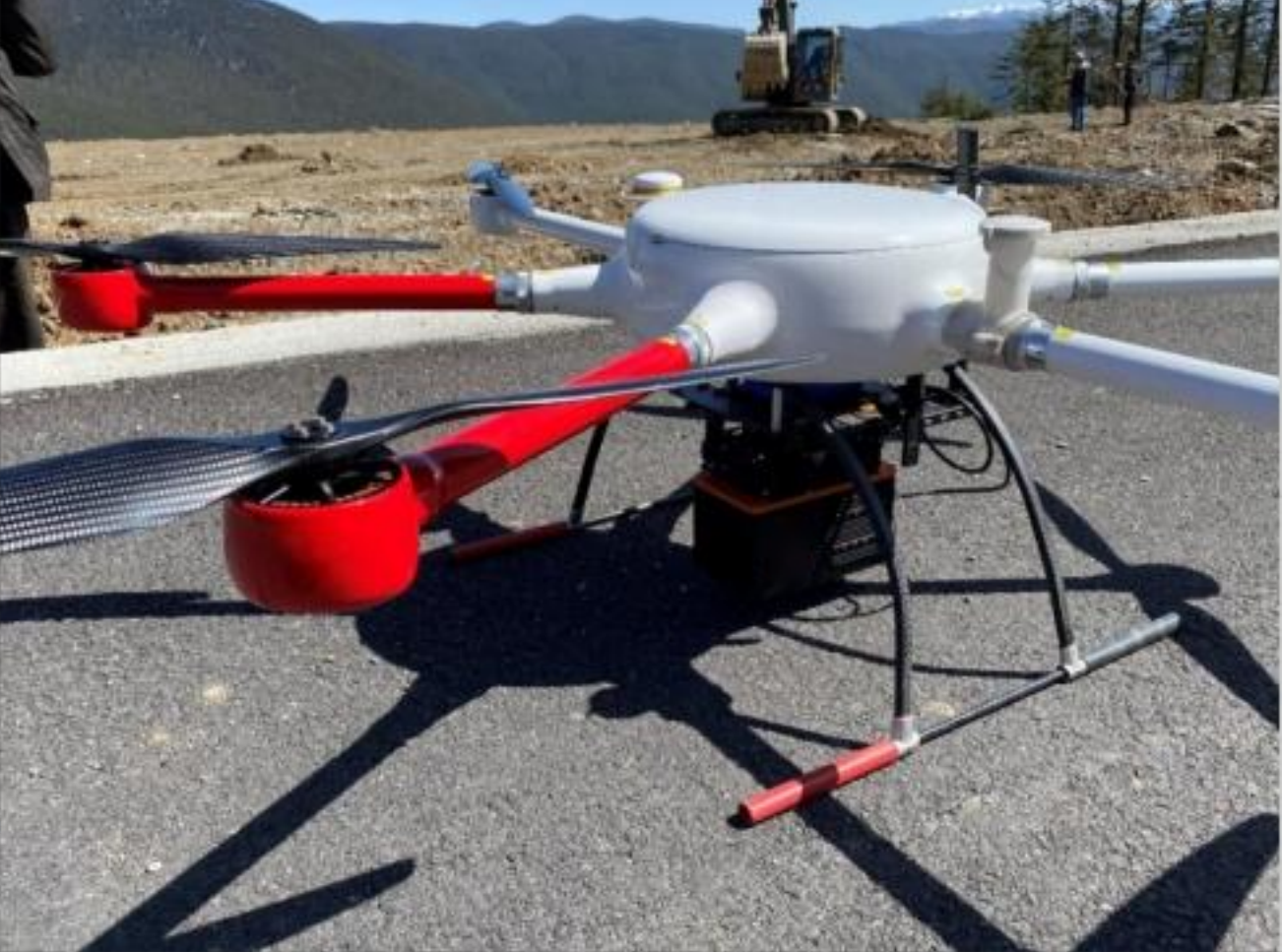

    Equipment Used: FT1500, Multi-rotor Drone

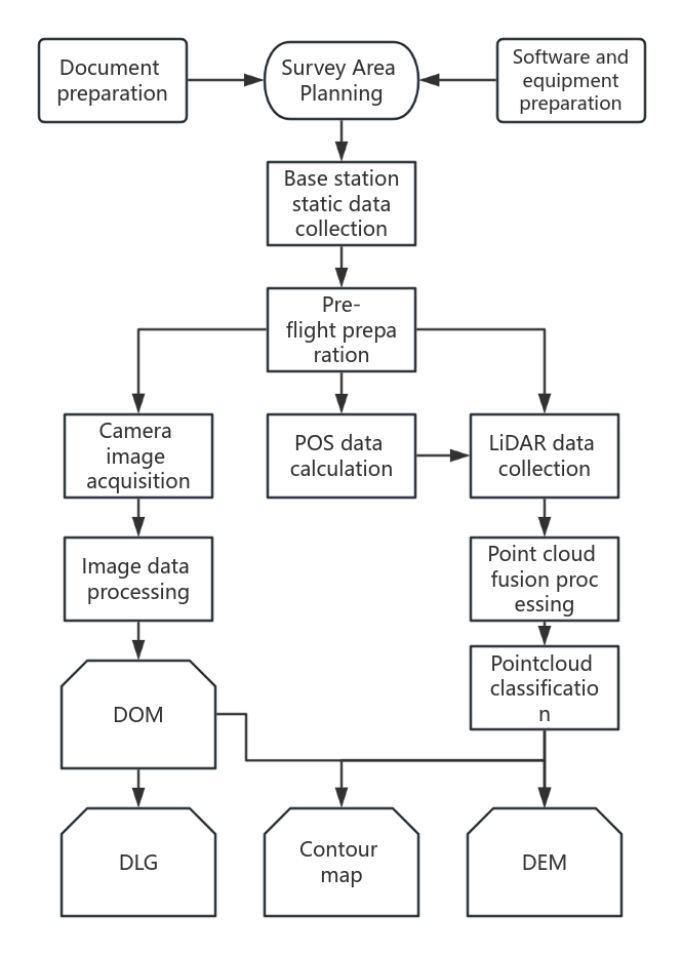

    Work Flow:



    Project Results

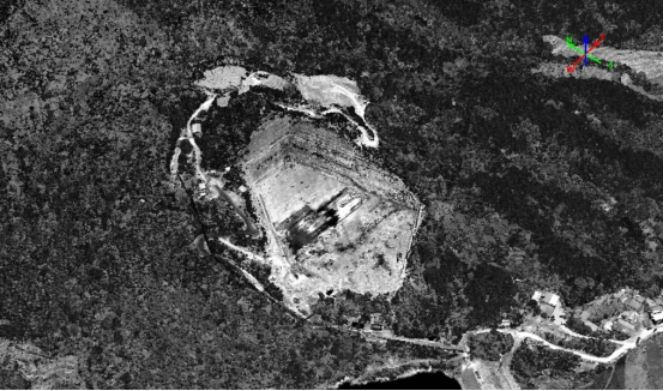

    Raw point cloud&True color point cloud

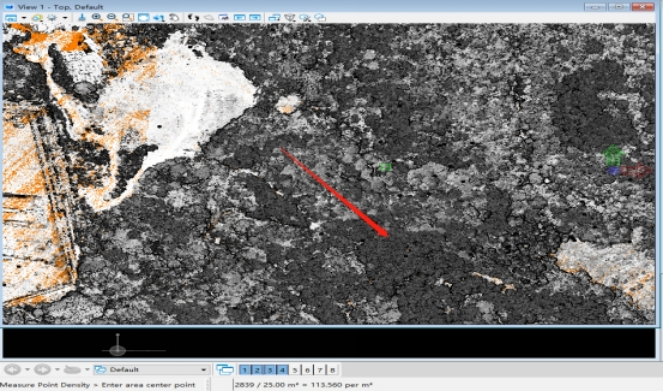

    Point cloud density:113per ㎡

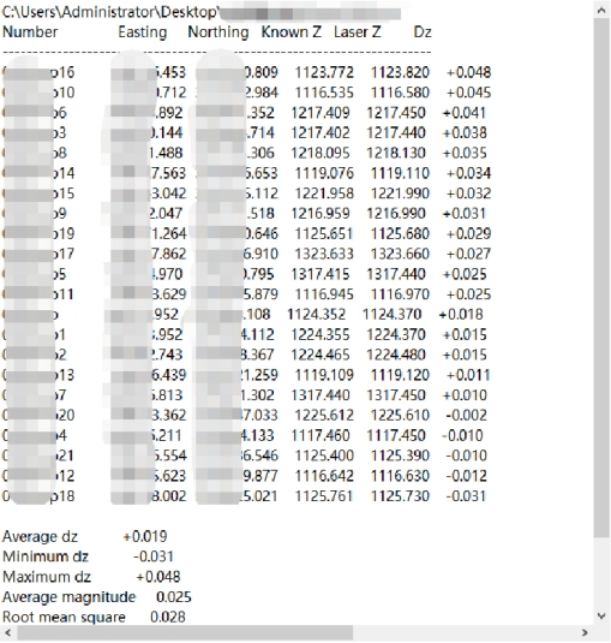

    Elevation accuracy:RMS 2.8cm

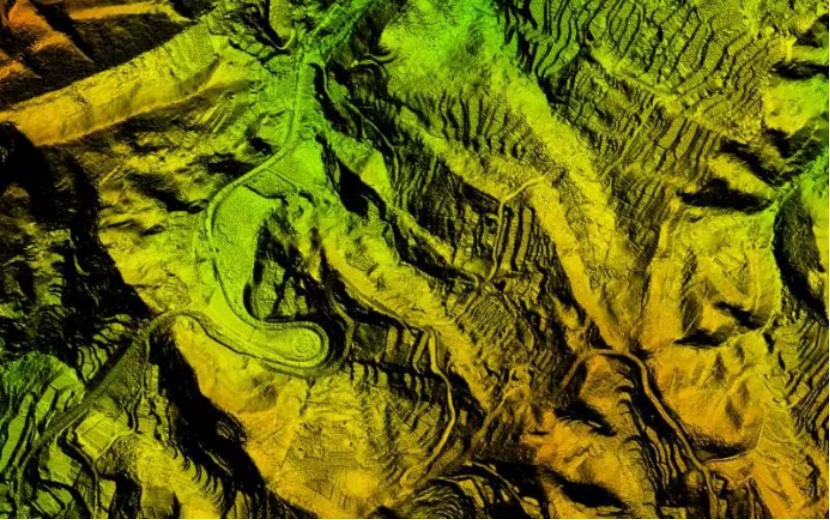

    DEM

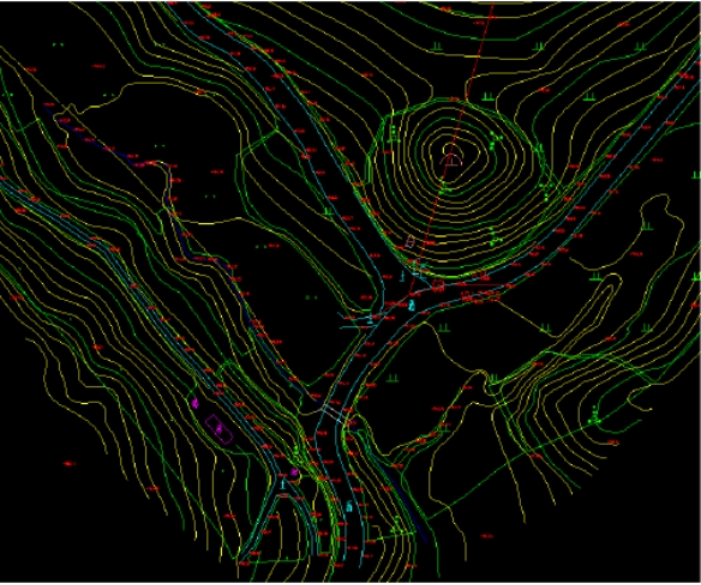

    Contour

    Traditional surveying methods, primarily total stations and GPS-RTK, have limitations such as low efficiency, incomplete information, and safety risks. Airborne LiDAR technology offers flexible and convenient operations with minimal impact from environmental conditions. It provides faster surveying speeds and higher efficiency, significantly reducing fieldwork time. The data quality is higher, with dense point clouds and improved mapping quality, all while substantially lowering labor costs.
