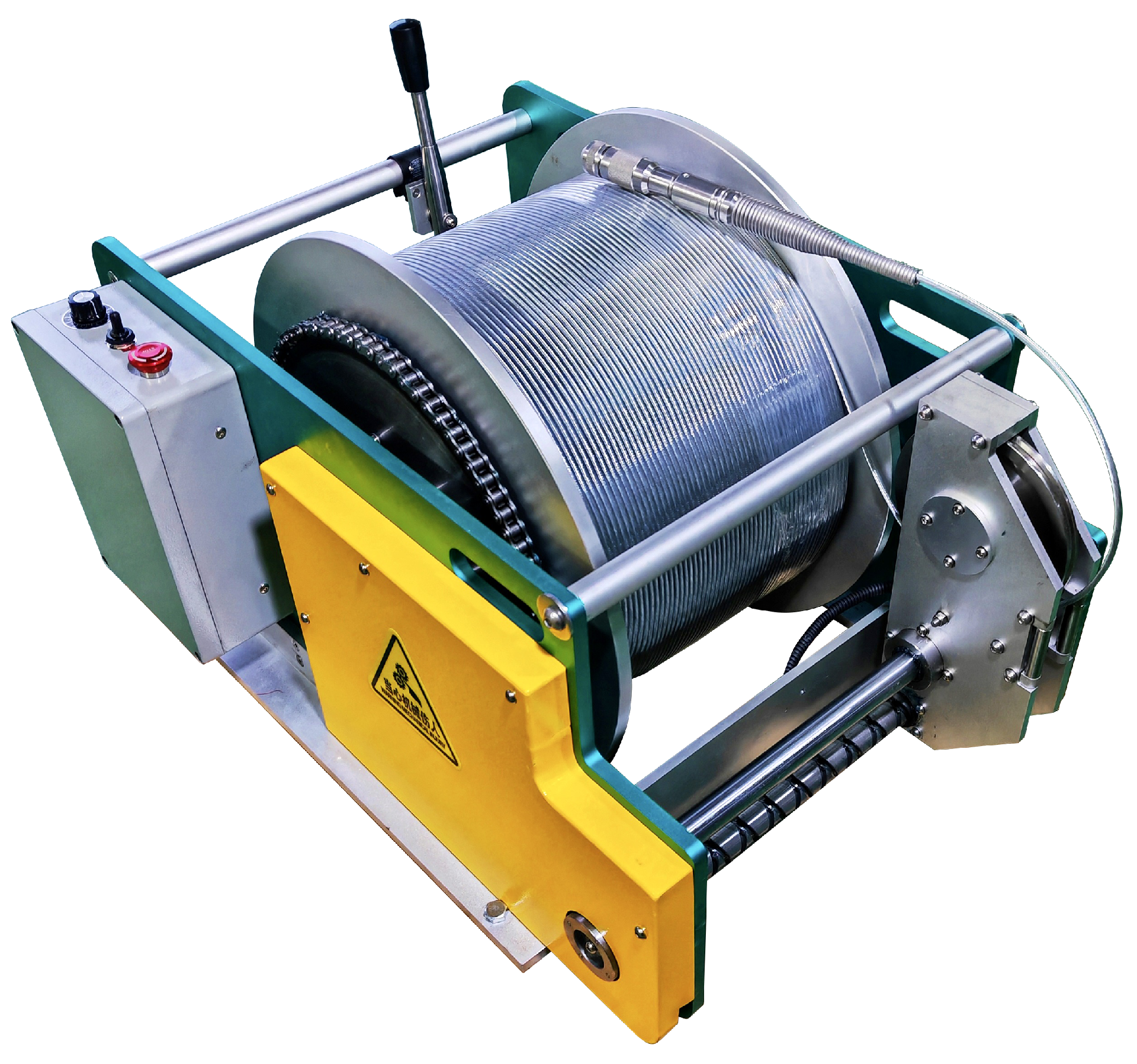

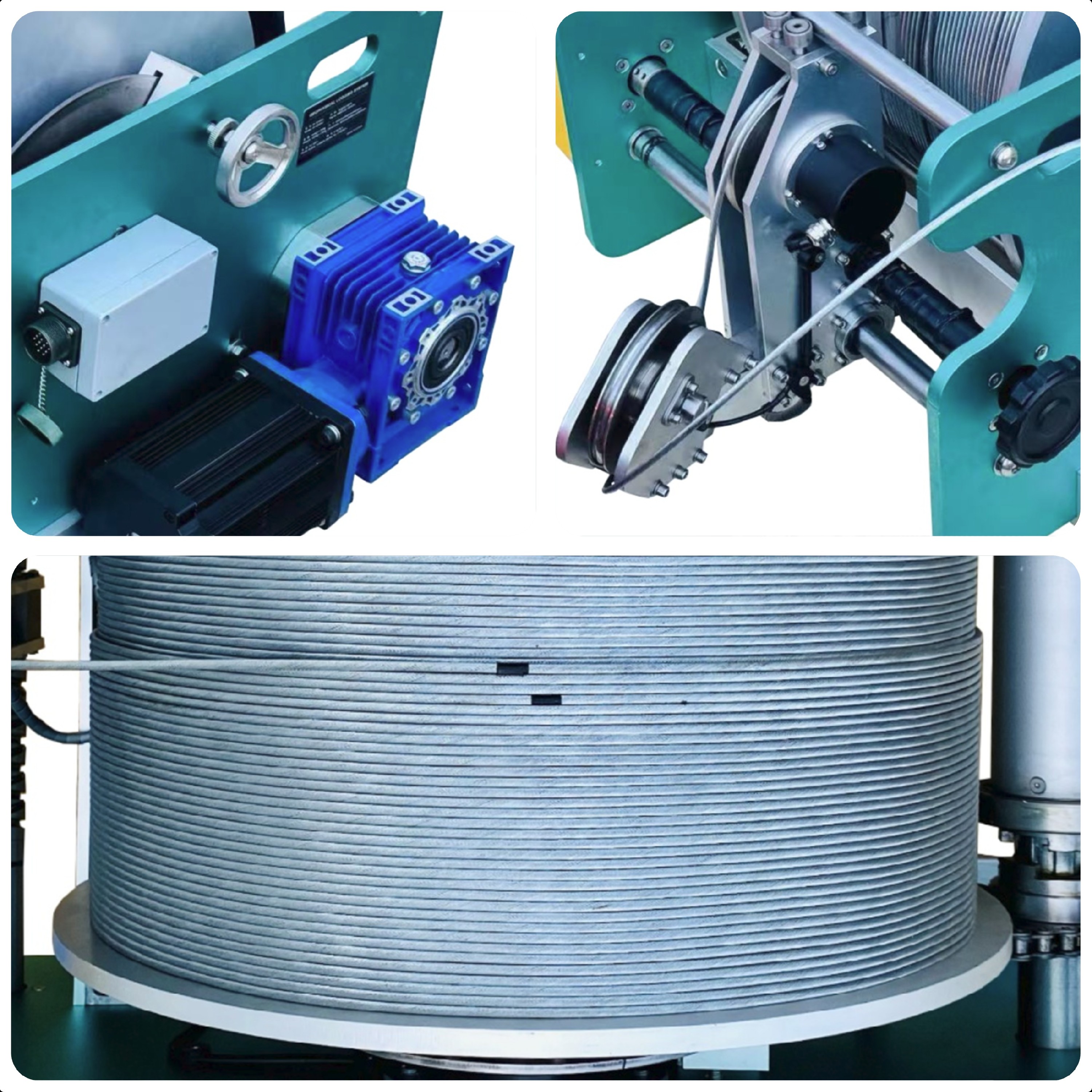

Dual-speed logging winch is mainly used in petroleum, geological, engineering exploration field, supporting logging and other geophysical instruments and downhole tools. The winch adopts anti-magnetic design, including high speed switching, stepless speed regulation, automatic cable row, tension protection, manual brake and other functions, can be applied to a variety of environmental conditions. The winch uses brushless DC motor as the power source. It can be used in geophysical exploration and geological survey of plateau, land and ocean environment. Strong adaptability, can be used for various specifications of steel wire rope, armored logging cable, conventional cable, etc.
Dual-speed logging winch adopts sprocket drive, which has the characteristics of simple structure, safe and reliable, convenient maintenance and easy operation. The winch width, height size is small, suitable for working under the condition of narrow underground space; Winch operation is simple, with speed regulation, control button, switch can be convenient to use.
Dual-speed logging winch has two speeds of fast and slow speed. Slow gear traction, used to pull heavy load; Fast gear speed is fast, used for rope back, pull empty car, etc. Users can change the speed and traction force to work under different conditions according to the needs of the site.
The technical indicators are as follows:
l Cable Capacity：1500m（4.7mm）
l Power Supply：1500W
l Maximum Pull：5KN
l Neutral gear setting: Yes
l High and low speed Settings: Yes
l Diameter of roller：180mm
Overall size：780mm*560mm*480mm
