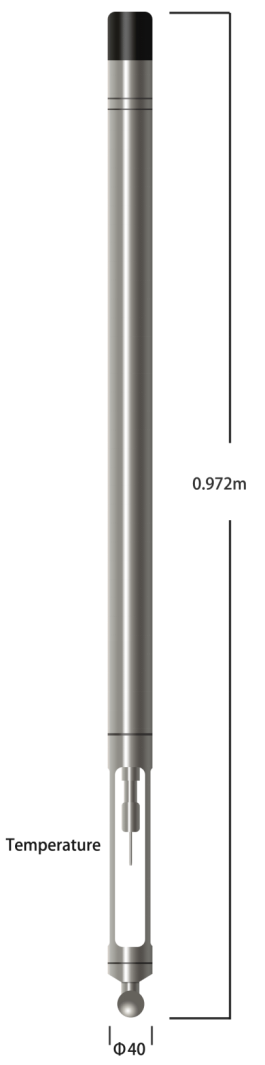

LW-238 Temperature Probe


Description

The Temperature Probe provides borehole temperature measurements. The borehole temperature measurement is helpful to detect anomalies caused by events such as fluid flow into the borehole.

It is generally used in hydrogeology to determine the concentration of dissolved ions in the aquifers and to locate the fluid flows occurring in the borehole.

Operating Conditions:Uncased;Borehole Fluid:Water or Mud

Features & Benefits

1、The sensor adopts pt100 platinum resistance of a small time constant and can quickly identify temperature changes in the stratum.

2、Strong resistance to jamming.

Applications

Identification of fluid flow in open/cased hole

Localization of the water table;Water-well monitoring

Localization of water intervals of different quality

Geothermal gradient logging

Often used in the implementation of temperature compensation equations for other logs

Parameter

1.Temperature Range:  0℃~100℃, Resolution:0.025℃

2.Temperature Sensor::Platinum Resistance (pt100)

3. Signal: bipolar codes

4.Environmental: Temperature≦80℃;Pressure≤20MPa
