Description

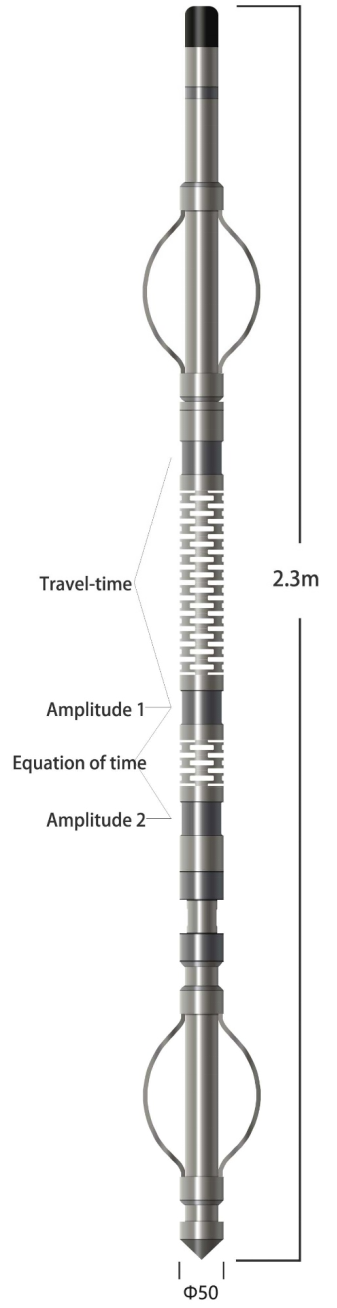

The JSS-3 Sonic Probe used extensively in the groundwater, mining, and geotechnical industries. Sonic logs are widely employed, often in combination with other logs, to provide porosity, permeability, and geo-mechanical properties. This probe is ideal for cased-hole and open hole applications, such as fracture identification and cement bond logging.
Operating Conditions:Uncased;Borehole Fluid:Water or Mud
Features & Benefits
1、Implement a high energy source wave generated by a ceramic-piezoelectric transducer.
2、Versatile, ubiquitous probe which functions with a wide range of applications and borehole conditions.
Applications
Identification and hydraulic characterization of fractures
Lithology identification
Variation of rock strength
Porosity and permeability evaluation
Cased hole: Cement Bond Logging (CBL)
Parameter
1.Sensor:Ceramic-piezoelectric transducer
2. Measuring Range: 125μs/m~555μs/m
3. Measurement Accuracy:5μs/m
4. Time-base:0. 5μs, Stability:0.1PPM
5. Environmental: Temperature≦85℃;Pressure≤20MPa
6.Signal:Bipolar codes
